VX2120-01 SMC Type 2 Way NC Brass Solenoid Valve 1/8'' 24VDC 220VAC

Brand Name : Brando

Model Number : VX2120-01

Certification : CE

Place of Origin : China

MOQ : 1 pc

Payment Terms : L/C, T/T, PayPal, Western Union, MoneyGram

Supply Ability : 100000 pcs per month

Delivery Time : 4-8 days

Packaging Details : Inner boxes, Carton, Pallet

Port Size : 1/8''

Orifice Size : 3mm

Operation Mode : 2 Way, Normally Closed

Action : Direct Acting

Body Material : Brass

Seal Material : NBR, EPDM, FKM

Voltages : 12VDC, 24VDC, 24VAC, 110VAC, 220VAC

Pressure Range : 0 To 1 MPa

Contact Now

VX2120-01 SMC Type 2 Way NC Brass Solenoid Valve 1/8'' 24VDC 220VAC



The VX2 series is 2 port direct solenoid valve for general purpose air, medium vacuum and water. Available body materials include brass or stainless steel with port size up to 1/2 inch.NBR seal is used as standard and FKM or EPDM is optional. Flow rate ranges from Cv of 0.23 to 2.21.



1. IP65 enclosure
2. Normally Closed and Normally Open type available, Class B coil
3. Body material: brass, stainless steel
4. Working pressure range: 0 to 1 MPa

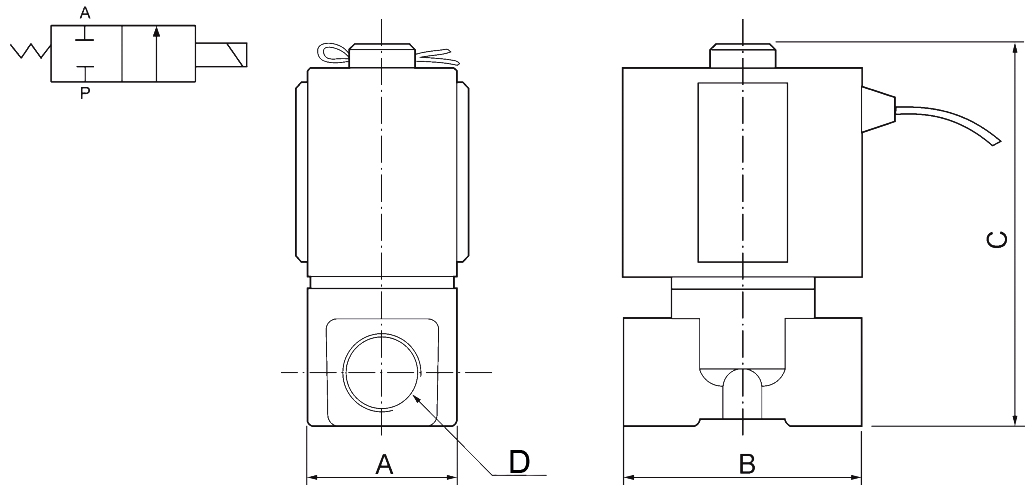

Main Dimension of VX2 Series Solenoid Valve:

VX2120-01 SMC Type 2 Way NC Brass Solenoid Valve 1/8'' 24VDC 220VAC

VX Series
A
B
C
D
VX2122-01
25
40
70
1/8''
VX2222-02
1/4''
VX2120-01
45
1/8''
VX2120-06
45
1/4''
VX2260-03
40
48
80
3/8''
VX2360-03
3/8''
VX2360-04
48
68
110
1/2''



Technical Data of VX2 Series Solenoid Valve:

Model
VX2112-01
VX2112-02
VX2120-01
VX2120-02
VX2260-03
VX2360-03
VX2360-04
Orifice Size
2mm
2mm
3mm
3mm
10mm
10mm
10mm
Port Size
1/8''
1/4''
1/8''
1/4''
3/8''
3/8''
1/2''
Medium
Water, Oil, Gas, Steam
Action
Direct Acting
NC/NO
Normally Open
Normally Closed
Body Material
Brass, Stainless Steel
Seal Material
NBR, FKM
Pressure
Range
0 to 1.0Mpa
Temp. Range
NBR: (-5 to +80℃), FKM: (-5 to +150℃)
