VFA3430-02 SMC Type Double Pneumatic Pilot Valve 5 Way 3 Position
A pilot valve is on duty to control a limited-flow control feed to a separate piloted valve. They can also be used in conjunction with solenoid valves. Piloted air valves offer a high level of control over an increased flow feed, negating the need for a much larger force.These valves are more powerful than electrical solenoids or actuators. This makes them ideal for remote and miniature applications where you need higher airflow or lower power.
Specifications of VFA Series Air Pilot Valves:
| Fluid | Air |
| Operating Pressure Range | 2 position single | 0.15 to 0.9 MPa |
| 2 position double | 0.1 to 0.9 MPa |
| 3 position | 0.15 to 0.9 MPa |
| Pilot Pressure Range | 2 position single | (0.4xP+0.1) to 0.9 MPa: Operating pressure range |
| 2 position double | 0.1 to 0.9 MPa |
| 3 position | 0.15 to 0.9 MPa |
| Ambient and Fluid Temperature | -10 to +60℃ (No freezing) |
| Lubrication | Not required |
| Mounting Orientation | Free |
| Impact/Vibration Resistance | 300/50 (m/s²) |

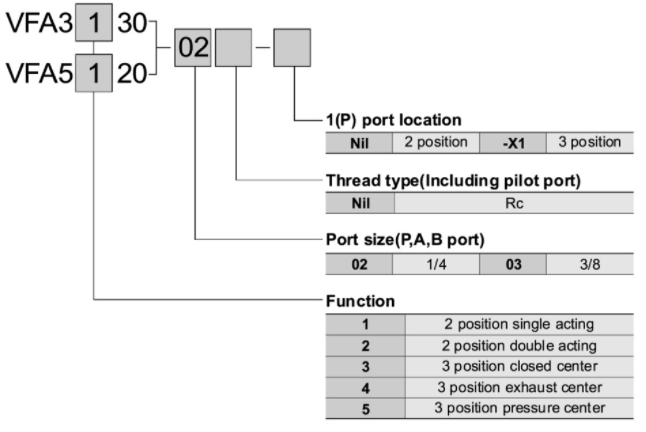

Ordering Code of VFA Series Air Pilot Valves:

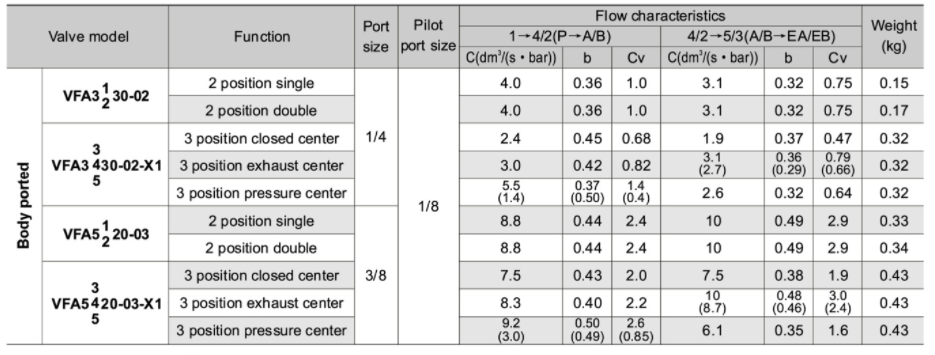

Flow Characteristics of VFA Series Air Pilot Valves:
Dimension of VFA Series Air Pilot Valves:
Production Video of BRANDO Pneumatic Valves:
More Pneumatic Products for you to choose:
| 2/2 Way Pneumatic Valves | 3/2 Way Pneumatic Valves | 5/2 Way Pneumatic Valves | 5/3 Way Pneumatic Valves |
| | | |

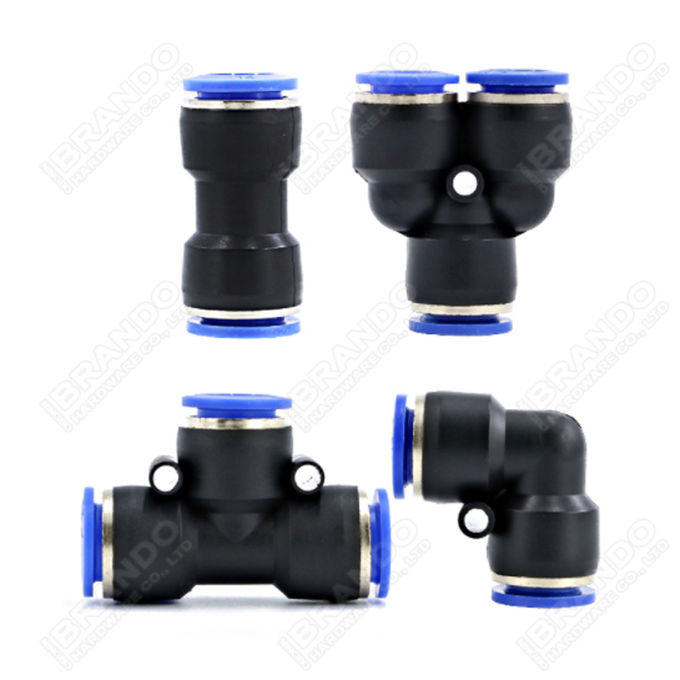

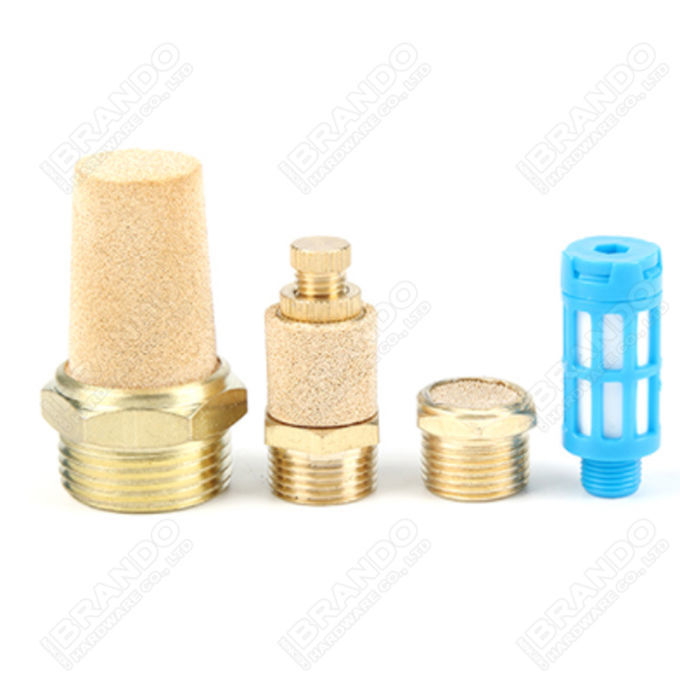

| Namur Solenoid Valves | Air Pilot Valves | Pneumatic Cylinders | Silencers and Fittings |
| |  |   |
